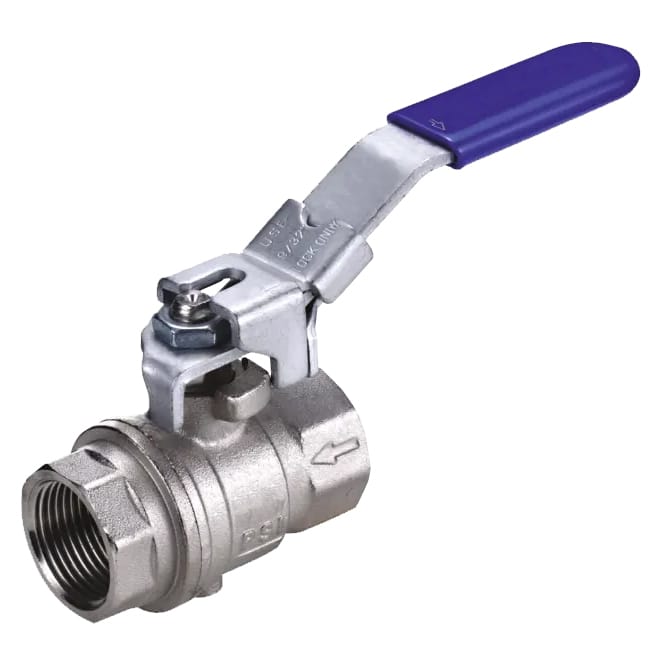

AIRpipe Safety Exhausting Double Female NPT Nickel Plated Ball Valve (Locking)
Price range: $45.00 through $330.00
- Description
- Size Guide
- Additional information
Description
Wall Brackets & Valved Connectors
- Quick connection
- Available or BSP/NPT thread, flange and plug-in connection type
- High-flow design ensure optimal performance
- Nickel-plated brass
Safety Exhausting Double Female Nickel Plated Ball Valve
| Model (NPT) | D1(mm) | D2(mm) | L(mm) | Thread |
|---|---|---|---|---|
| 0075 | 1/2in | 1/2in | 53 | Female |
| 0175 | 3/4in | 3/4in | 58 | Female |
| 2075 | 1-in | 1-in | 60 | Female |
| 4075 | 1 1/2in | 1 1/2in | 65 | Female |
| 5075 | 2in | 2in | 53 | Female |
Engineered for Superior Performance
AIRpipe Aluminum Piping Size Guide
System Piping — Technical Specifications & Dimensions
| Part # | Nominal Size | US Trade Equiv. | Outer Dia. (OD) | Inner Dia. (ID) | Wall Thickness | Length | Weight |
|---|---|---|---|---|---|---|---|
| 1000 | 20 mm | 3/4″ | 20.1 mm | 16.5 mm | 1.8 mm | 19 ft | 2.5 lbs |
| 2000 | 25 mm | 1″ | 25.1 mm | 21.5 mm | 1.8 mm | 19 ft | 3.5 lbs |
| 4000 | 40 mm | 1-1/2″ | 40.1 mm | 36.5 mm | 1.8 mm | 19 ft | 7.5 lbs |
| 5000 | 50 mm | 2″ | 50.1 mm | 45.5 mm | 2.3 mm | 19 ft | 12.0 lbs |
| 6000 | 63 mm | 2-1/2″ | 67.6 mm | 63.0 mm | 2.3 mm | 19 ft | 17.0 lbs |
| 7000 | 80 mm | 3″ | 84.8 mm | 80.0 mm | 2.4 mm | 19 ft | 23.0 lbs |
| 8000 | 100 mm | 4″ | 101.8 mm | 96.5 mm | 2.65 mm | 19 ft | 29.0 lbs |
| 9000 | 150 mm | 6″ | 153.0 mm | 147.5 mm | 2.75 mm | 19 ft | 50.0 lbs |
| A000 | 200 mm | 8″ | 205.0 mm | 198.5 mm | 3.25 mm | 19 ft | 73.0 lbs |
