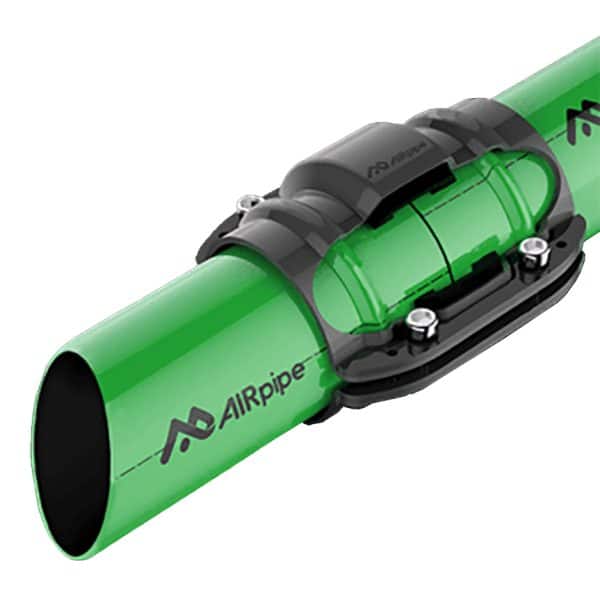

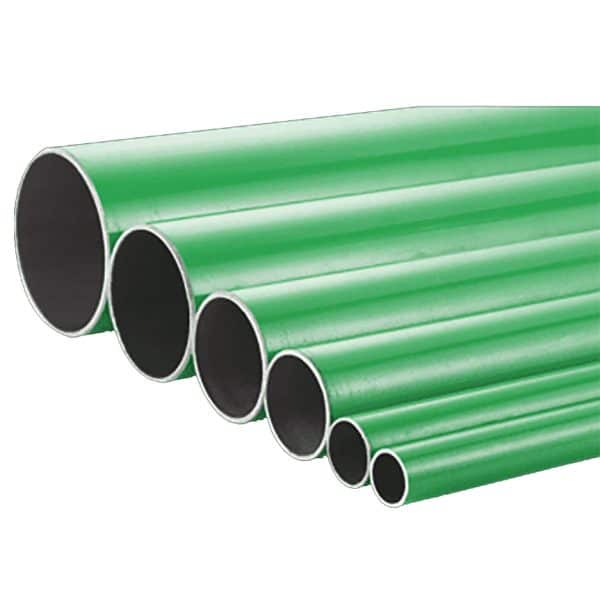

AIRpipe Green Rigid Aluminum Pipe
Price range: $73.00 through $1,483.00
- Description
- Size Guide
- Additional information
Description
Green Rigid Aluminum Piping
- Clean air certified (ISO 8573-1)
- Optimum flow performance
- Lightweight
- High quality powder coated exterior
- Extruded aluminum
- Suitable for Compressed air, oil-free or lubricated vacuum, and inert gasses (Nitrogen, Argon, Helium)
- Max working pressure: 232 psi
- Max working pressure for DN200 is 188 psi
- Vacuum: 3 inches of mercury (absolute pressure)
- Working temp: -4 up to +176
| Model | Diameter (in) | OD (mm) | ID(mm) | Length (ft) |
|---|---|---|---|---|
| 1061 | 3/4 in | 20.1 | 17.5 | 19 |
| 2061 | 1 in | 25.1 | 22.5 | 19 |
| 4061 | 1 1/2 in | 40.1 | 36.5 | 19 |
| 5061 | 2 in | 50.1 | 45.7 | 19 |
| 6061 | 2 1/2 in | 67.6 | 63 | 19 |
| 7061 | 3 in | 84.8 | 80.0 | 19 |
| 8061 | 4 in | 101.8 | 96.8 | 19 |
| 9061 | 6 in | 153 | 147.5 | 19 |
| A061 | 8 in | 205 | 197.8 | 19 |
Engineered for Superior Performance
AIRpipe Aluminum Piping Size Guide
System Piping — Technical Specifications & Dimensions
| Part # | Nominal Size | US Trade Equiv. | Outer Dia. (OD) | Inner Dia. (ID) | Wall Thickness | Length | Weight |
|---|---|---|---|---|---|---|---|
| 1000 | 20 mm | 3/4″ | 20.1 mm | 16.5 mm | 1.8 mm | 19 ft | 2.5 lbs |
| 2000 | 25 mm | 1″ | 25.1 mm | 21.5 mm | 1.8 mm | 19 ft | 3.5 lbs |
| 4000 | 40 mm | 1-1/2″ | 40.1 mm | 36.5 mm | 1.8 mm | 19 ft | 7.5 lbs |
| 5000 | 50 mm | 2″ | 50.1 mm | 45.5 mm | 2.3 mm | 19 ft | 12.0 lbs |
| 6000 | 63 mm | 2-1/2″ | 67.6 mm | 63.0 mm | 2.3 mm | 19 ft | 17.0 lbs |
| 7000 | 80 mm | 3″ | 84.8 mm | 80.0 mm | 2.4 mm | 19 ft | 23.0 lbs |
| 8000 | 100 mm | 4″ | 101.8 mm | 96.5 mm | 2.65 mm | 19 ft | 29.0 lbs |
| 9000 | 150 mm | 6″ | 153.0 mm | 147.5 mm | 2.75 mm | 19 ft | 50.0 lbs |
| A000 | 200 mm | 8″ | 205.0 mm | 198.5 mm | 3.25 mm | 19 ft | 73.0 lbs |
