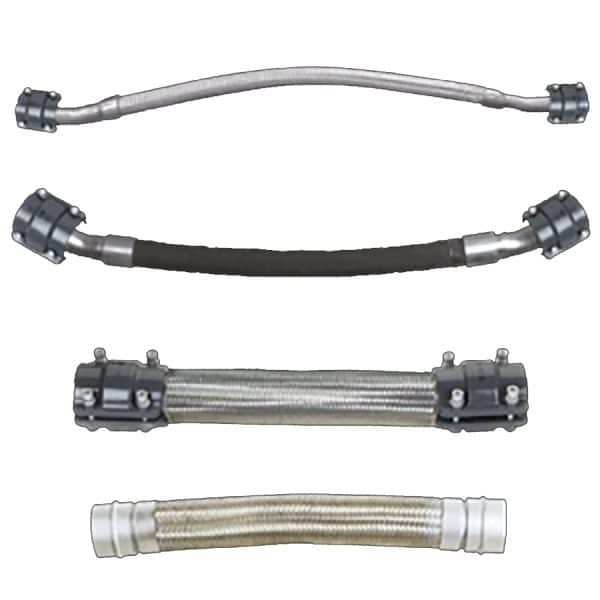

AIRpipe Flex Hose 30° Connection
Price range: $438.00 through $1,458.00
- Description
- Size Guide
- Additional information
Description
Flexible Hose
- Quick connection
- Superior reliability & longevity
- Designed for extreme environments
- Modular and reusable
- 100% recyclable and non-flammable materials (UL94-HB Standard)
- Viton seals for high temp applications are available
Flexible Hoses
| Model | Diameter | D(mm) | L1(mm) | L2(mm) | Material |
|---|---|---|---|---|---|
| 4155 | 40 | 40.1 | 39.37 | 47.24 | SS304,30° |
| 5155 | 50 | 50.1 | 43.31 | 53.15 | |
| 6155 | 63 | 67.6 | 47.24 | 53.15 | SS304,30° |
| 7155 | 80 | 84.8 | 66.93 | 72.83 | |
| 8155 | 100 | 101.8 | 66.93 | 74.80 | |
| 1055 | 20 | 20.1 | 19.69 | 22.44 | SS304 Straight Connection |
| 2055 | 25 | 25.1 | 19.69 | 22.44 | |
| 4055 | 40 | 40.1 | 19.69 | 23.62 | |
| 5055 | 50 | 50.1 | 19.69 | 23.62 | |
| 6055 | 63 | 67.6 | 19.69 | 25.59 | SS304 Straight Connection |
| 7055 | 80 | 84.8 | 19.69 | 25.59 | |
| 8055 | 100 | 101.8 | 19.69 | 25.98 | |
| 9055 | 150 | 153 | 35.43 | 41.89 | |
| A055 | 200 | 205 | 55.12 | 61.18 |
*Includes bolts and gaskets
*Supplied with one union connector
Engineered for Superior Performance
AIRpipe Aluminum Piping Size Guide
System Piping — Technical Specifications & Dimensions
| Part # | Nominal Size | US Trade Equiv. | Outer Dia. (OD) | Inner Dia. (ID) | Wall Thickness | Length | Weight |
|---|---|---|---|---|---|---|---|
| 1000 | 20 mm | 3/4″ | 20.1 mm | 16.5 mm | 1.8 mm | 19 ft | 2.5 lbs |
| 2000 | 25 mm | 1″ | 25.1 mm | 21.5 mm | 1.8 mm | 19 ft | 3.5 lbs |
| 4000 | 40 mm | 1-1/2″ | 40.1 mm | 36.5 mm | 1.8 mm | 19 ft | 7.5 lbs |
| 5000 | 50 mm | 2″ | 50.1 mm | 45.5 mm | 2.3 mm | 19 ft | 12.0 lbs |
| 6000 | 63 mm | 2-1/2″ | 67.6 mm | 63.0 mm | 2.3 mm | 19 ft | 17.0 lbs |
| 7000 | 80 mm | 3″ | 84.8 mm | 80.0 mm | 2.4 mm | 19 ft | 23.0 lbs |
| 8000 | 100 mm | 4″ | 101.8 mm | 96.5 mm | 2.65 mm | 19 ft | 29.0 lbs |
| 9000 | 150 mm | 6″ | 153.0 mm | 147.5 mm | 2.75 mm | 19 ft | 50.0 lbs |
| A000 | 200 mm | 8″ | 205.0 mm | 198.5 mm | 3.25 mm | 19 ft | 73.0 lbs |
