AIRpipe Straight Quick Drop
Price range: $165.00 through $548.00
- Description
- Size Guide
- Additional information
Description
Quick Drop Connectors
- All-aluminum body
- Alignment stub design for quick installation
- Optimum flow
- Captivated seal

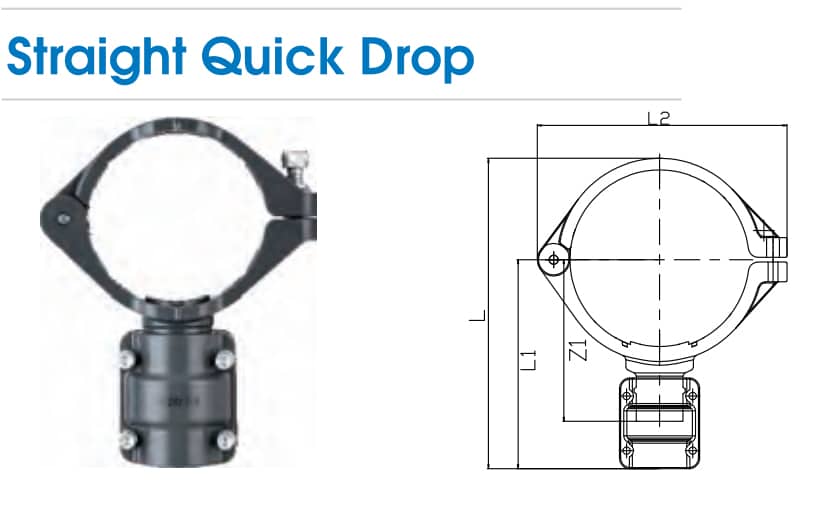

| Model | Diameter (mm) | L(mm) | L1(mm) | L2(mm) | Z1(mm) | Hole Saw Bit Size |
|---|---|---|---|---|---|---|
| 8410 | 100×40 | 204 | 134 | 162 | 104 | 38 |
| 9410 | 150×40 | 267 | 180 | 215 | 150 | 51 |
| 9510 | 150×50 | 255 | 181 | 215 | 151 | 51 |
| A410 | 200×40 | 329 | 206 | 269 | 176 | 51 |
| A510 | 200×50 | 330 | 207 | 269 | 177 | 51 |
Engineered for Superior Performance
AIRpipe Aluminum Piping Size Guide
System Piping — Technical Specifications & Dimensions
| Part # | Nominal Size | US Trade Equiv. | Outer Dia. (OD) | Inner Dia. (ID) | Wall Thickness | Length | Weight |
|---|---|---|---|---|---|---|---|
| 1000 | 20 mm | 3/4″ | 20.1 mm | 16.5 mm | 1.8 mm | 19 ft | 2.5 lbs |
| 2000 | 25 mm | 1″ | 25.1 mm | 21.5 mm | 1.8 mm | 19 ft | 3.5 lbs |
| 4000 | 40 mm | 1-1/2″ | 40.1 mm | 36.5 mm | 1.8 mm | 19 ft | 7.5 lbs |
| 5000 | 50 mm | 2″ | 50.1 mm | 45.5 mm | 2.3 mm | 19 ft | 12.0 lbs |
| 6000 | 63 mm | 2-1/2″ | 67.6 mm | 63.0 mm | 2.3 mm | 19 ft | 17.0 lbs |
| 7000 | 80 mm | 3″ | 84.8 mm | 80.0 mm | 2.4 mm | 19 ft | 23.0 lbs |
| 8000 | 100 mm | 4″ | 101.8 mm | 96.5 mm | 2.65 mm | 19 ft | 29.0 lbs |
| 9000 | 150 mm | 6″ | 153.0 mm | 147.5 mm | 2.75 mm | 19 ft | 50.0 lbs |
| A000 | 200 mm | 8″ | 205.0 mm | 198.5 mm | 3.25 mm | 19 ft | 73.0 lbs |
