AIRpipe Aluminum Flange
Price range: $329.00 through $1,095.00
- Description
- Size Guide
- Additional information
Description
Flange Connectors
- Quick connection
- Superior reliability & longevity
- Designed for extreme environments
- Modular and reusable
- 100% recyclable and non-flammable materials (UL94-HB Standard)
- Viton seals for high temp applications are available

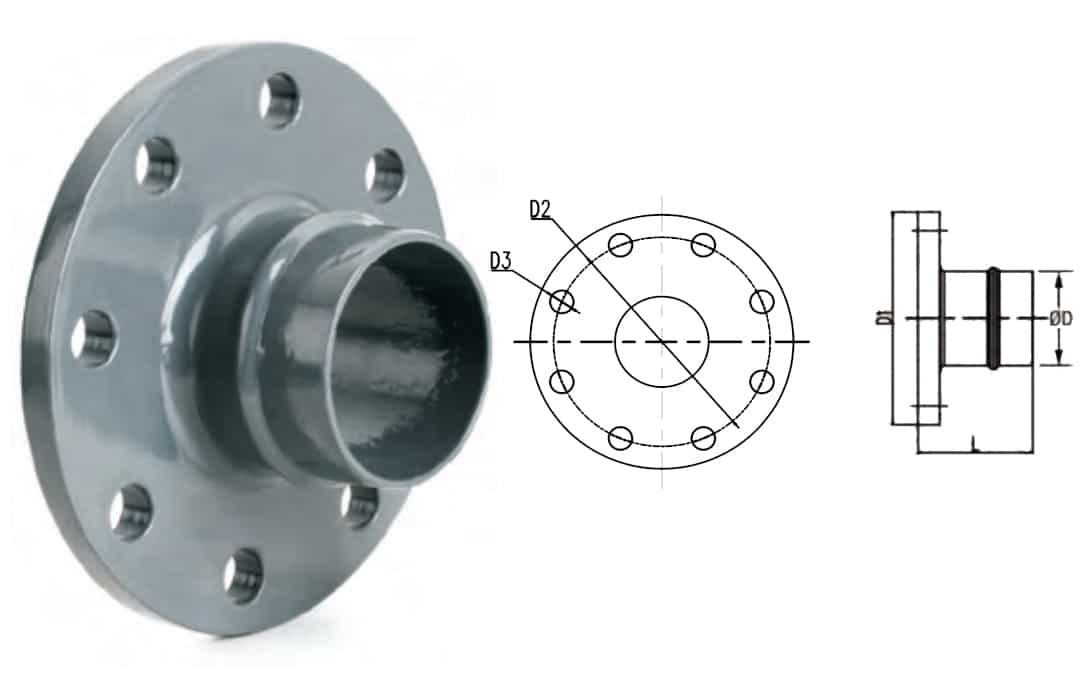

ANSI Aluminum Flange
| Model | Pipe End Size |
Flange Size |
Bolt Size |
L | D1 | D2 | D3 |
|---|---|---|---|---|---|---|---|
| 6170 | 2 1/2″ | 2 1/2″ | M16 | 82 | 170 | 139.7 | 18 |
| 7170 | 3″ | 3″ | M16 | 82 | 180 | 152.4 | 18 |
| 8170 | 4″ | 4″ | M16 | 92 | 230 | 190.5 | 18 |
| 9170 | 6″ | 6″ | M20 | 100 | 280 | 241.3 | 22 |
| A170 | 8″ | 8″ | M20 | 109 | 345 | 298.5 | 22 |
*Includes bolts and gaskets
*Supplied with one union connector
Engineered for Superior Performance
AIRpipe Aluminum Piping Size Guide
System Piping — Technical Specifications & Dimensions
| Part # | Nominal Size | US Trade Equiv. | Outer Dia. (OD) | Inner Dia. (ID) | Wall Thickness | Length | Weight |
|---|---|---|---|---|---|---|---|
| 1000 | 20 mm | 3/4″ | 20.1 mm | 16.5 mm | 1.8 mm | 19 ft | 2.5 lbs |
| 2000 | 25 mm | 1″ | 25.1 mm | 21.5 mm | 1.8 mm | 19 ft | 3.5 lbs |
| 4000 | 40 mm | 1-1/2″ | 40.1 mm | 36.5 mm | 1.8 mm | 19 ft | 7.5 lbs |
| 5000 | 50 mm | 2″ | 50.1 mm | 45.5 mm | 2.3 mm | 19 ft | 12.0 lbs |
| 6000 | 63 mm | 2-1/2″ | 67.6 mm | 63.0 mm | 2.3 mm | 19 ft | 17.0 lbs |
| 7000 | 80 mm | 3″ | 84.8 mm | 80.0 mm | 2.4 mm | 19 ft | 23.0 lbs |
| 8000 | 100 mm | 4″ | 101.8 mm | 96.5 mm | 2.65 mm | 19 ft | 29.0 lbs |
| 9000 | 150 mm | 6″ | 153.0 mm | 147.5 mm | 2.75 mm | 19 ft | 50.0 lbs |
| A000 | 200 mm | 8″ | 205.0 mm | 198.5 mm | 3.25 mm | 19 ft | 73.0 lbs |
