AIRpipe Butterfly Valve (Pre-assembled)
Price range: $442.00 through $1,896.00
- Description
- Size Guide
- Additional information
Description
Wall Brackets & Valved Connectors
- Quick connection
- Available or BSP/NPT thread, flange and plug-in connection type
- High-flow design ensure optimal performance
- Nickel-plated brass

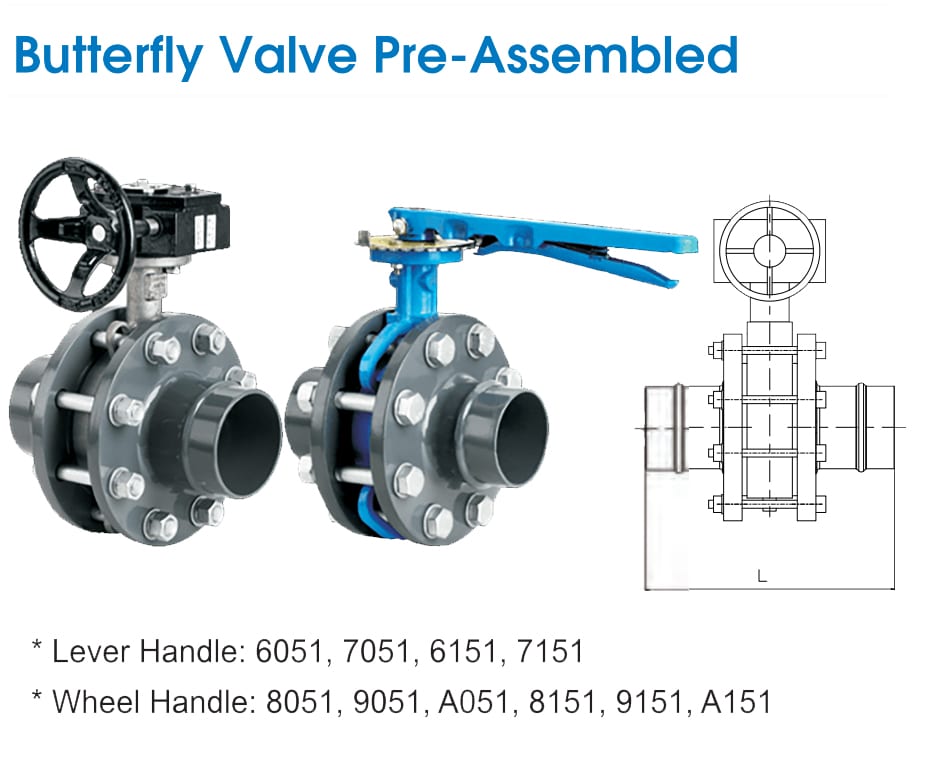

| Model (NPT) | Diameter (mm) | L(mm) | Valve Material |
|---|---|---|---|
| 6051 | 63 | Castlron | |
| 7051 | 80 | Castlron | |
| 8051 | 100 | 236 | Castlron |
| 9051 | 150 | 256 | Cast Iron |
| A051 | 200 | 278 | Cast Iron |
| 6151 | 63 | 188 | Stainless Steel |
| 7151 | 80 | 210 | Stainless Steel |
| 8151 | 100 | 236 | Stainless Steel |
| 9151 | 150 | 256 | Stainless Steel |
| A151 | 200 | 278 | Stainless Steel |
Engineered for Superior Performance
AIRpipe Aluminum Piping Size Guide
System Piping — Technical Specifications & Dimensions
| Part # | Nominal Size | US Trade Equiv. | Outer Dia. (OD) | Inner Dia. (ID) | Wall Thickness | Length | Weight |
|---|---|---|---|---|---|---|---|
| 1000 | 20 mm | 3/4″ | 20.1 mm | 16.5 mm | 1.8 mm | 19 ft | 2.5 lbs |
| 2000 | 25 mm | 1″ | 25.1 mm | 21.5 mm | 1.8 mm | 19 ft | 3.5 lbs |
| 4000 | 40 mm | 1-1/2″ | 40.1 mm | 36.5 mm | 1.8 mm | 19 ft | 7.5 lbs |
| 5000 | 50 mm | 2″ | 50.1 mm | 45.5 mm | 2.3 mm | 19 ft | 12.0 lbs |
| 6000 | 63 mm | 2-1/2″ | 67.6 mm | 63.0 mm | 2.3 mm | 19 ft | 17.0 lbs |
| 7000 | 80 mm | 3″ | 84.8 mm | 80.0 mm | 2.4 mm | 19 ft | 23.0 lbs |
| 8000 | 100 mm | 4″ | 101.8 mm | 96.5 mm | 2.65 mm | 19 ft | 29.0 lbs |
| 9000 | 150 mm | 6″ | 153.0 mm | 147.5 mm | 2.75 mm | 19 ft | 50.0 lbs |
| A000 | 200 mm | 8″ | 205.0 mm | 198.5 mm | 3.25 mm | 19 ft | 73.0 lbs |
